Plug&Play biltilpasset antennesplitter. Byttes ut med bilens originale FM-splitter og gjør at man kan hente ut DAB-signal med bilens originale antenne uten å trekke nye kabler eller montere egen antenne for DAB. Passer følgdende bilmodeller:
AUDI Q5 (8R) ('08-'16). SEAT LEON (5F) ('12-'20). SKODA FABIA + KOMBI (NJ) ('15-'20), OCTAVIA (5E) ('13-'20), OCTAVIA KOMBI (5E) ('13-'20), SUPERB (3T) ('13-'15), SUPERB KOMBI (3T) ('13-'15). VW GOLF VI (5K1) ('08-'12), GOLF VI VARIANT (5K1) ('09-'13), GOLF VII (AU) ('13-'20), GOLF VII VARIANT (AU) ('13-'17), GOLF VII SPORTSVAN (AU) ('09-'13), TIGUAN (5N) ('11-'15), TIGUAN II (AD1) ('15-'20), TOURAN II (5T) ('15-'20), PASSAT CC (3C) ('08-'12), PASSAT VARIANT (3C) ('10-'14).

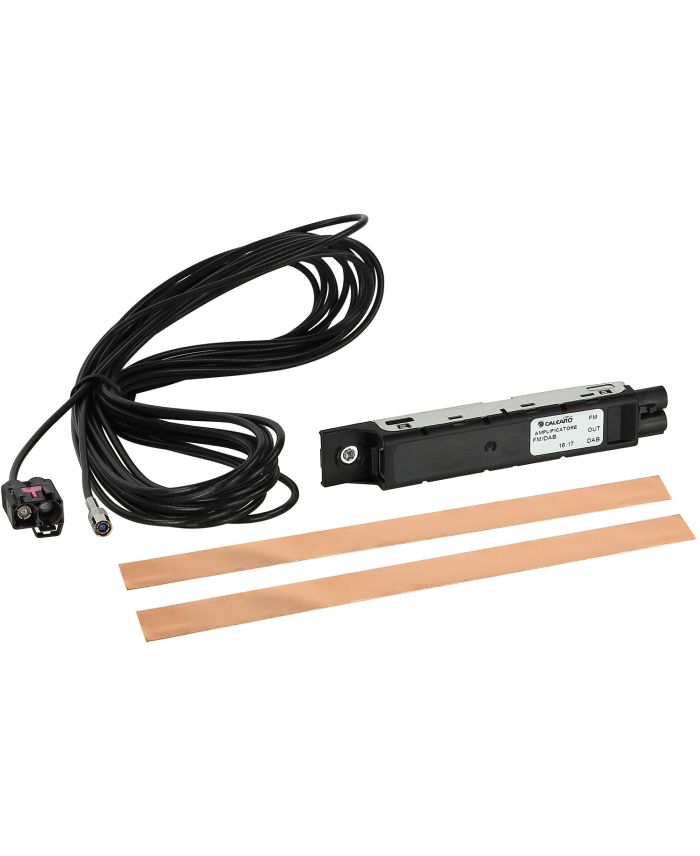

Antenna splitter FM DAB/DAB+
FM 12V phantom power
DAB/DAB+ 12V phantom power
Installation point: OEM-antenna amplifier
Dimensionst: L 10 cm / B 2 cm / H 1 cm
FM in: OEM
DAB/DAB+ connector: Fakra(m) cable: 6,5 m / Z = 50Ohm / C = 101 pF/m
FM connector: OEM Fakra(m)
Frequency range:
FM 87,5 - 108 Mhz
DAB/DAB+ iii Band 174 - 240 MHz
benefit (dB):
FM 6 dB
DAB/DAB+ iiiBand 19dB
power consumption:
FM 40 mA max
DAB/DAB+ 50 mA max
Vehicle application:
Audi Q5 (8R) 2008 - 2016
Seat Leon (5F) 2012 - 2020*
Skoda Fabia + Kombi (NJ) 2015 - 2020*
Skoda Octavia (5E) 2013 - 2020*
Skoda Oktavia Kombi (5E) 2013 - 2020*
Skoda Superb (3T) 2013 - 2015*****
Skoda Superb Kombi (3T) 2013 - 2015
VW Golf VI (5K1) 2008 - 2012**/****
VW Golf VI Variant (5K1) 2009 - 2013*
VW Golf VII (AU) 2013 - 2020**
VW Golf VII Variant (AU) 2013 - 2017*
VW Golf VII Sportsvan (AU) 2009 - 2013*
VW Tiguan (5N) 2011 - 2015**
VW Tiguan II (AD1) 2015 - 2020**
VW Touran II (5T) 2015 - 2020*
VW Passat CC (3C) 2008 - 2012 *****
VW Passat Variant (3C) 2010 - 2014
OEM-antenna amplifier:
* rear window
**quarter window left
*** quarter window right
****tailgate
***** C-pillarleft
| Varenummer | 15-7590007 |
|---|---|
| Vekt med embalasje | 0.100000 |
| Biltilpasset | DAB-antenne |
| Antall | 1 |
| Enhet | Stykk |
| Merkevare | ACV |
| Produksjonsland | Kina |
