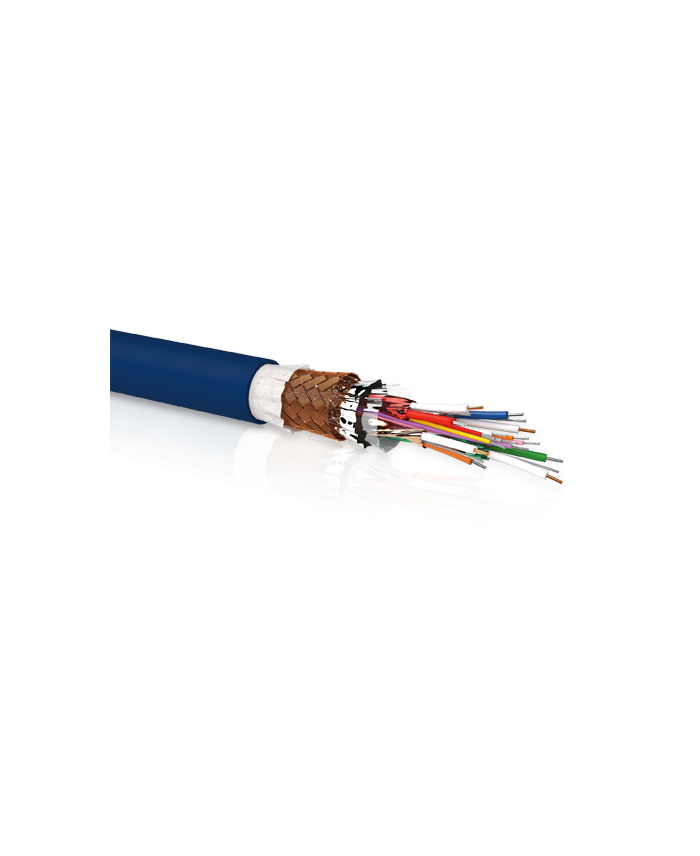

Top-class HDMI® cable made from highly pure HPOCC copper. A special clearly recognizable OEHLBACH colour code for the inner conductors and diameters adapted to the ProIn HDMI® plugs now for the first time make the self-assembly of these cables easy – HDMI® cables can now at last be easily run through empty conduits. A dense shielding made from oxygen-free copper reliably blocks out external interference. The currently highest possible resolution of 1080p may be realized at distances of up 15 m. This means that the cable can help solve the problems that arise in many home-cinema installations.
100 meter hel rull.
Top-class HDMI® cable made from highly pure HPOCC copper. A special clearly recognizable OEHLBACH colour code for the inner conductors and diameters adapted to the ProIn HDMI® plugs now for the first time make the self-assembly of these cables easy – HDMI® cables can now at last be easily run through empty conduits. A dense shielding made from oxygen-free copper reliably blocks out external interference. The currently highest possible resolution of 1080p may be realized at distances of up 15 m. This means that the cable can help solve the problems that arise in many home-cinema installations.
| triple shielding | Robust plastic sheathing |
| HPOCC® - mono-crystalline oxygen-free copper inner conductor |
| Inner conductor layout | 1 x 0.5 mm |
|---|---|
| Cable sheathing | plastic |
| Shielding quantity | triple shielding |
| Inner conductors: quantity | 5 pairs |
| Insulation: thickness | 0.42 mm |
| AWG | 24 |
| Insulation: material | Foamed HDPE |
| Minimum bending radius | 53 mm |
| Flame test | UL VW-1 |
| Outer sheath: thickness | 1,15 mm |
| Inner conductor material | 24 carat gold plated pins |
| Shielding material | 2 x aluminium foil + 1 x copper braid |
| Outer cable diameter | 8,8 mm |
| Length | 1 |
| Varenummer | 8001 |
|---|---|
| Antall | 1 |
| Enhet | Meter |
| Merkevare | Oehlbach |
| Vekt med embalasje | 1.000000 |
